- Quick and accurate alignment of pipe during welding operations
- Field proven in thousand of miles of pipeline construction under the most extreme field conditions.
- Front and rear heads operate independently to lock the clamps into position.
- Specially designed shoes on each head exert pressure uniformly around the inside circumference of the pipe to maintain necessary alignment .
- Each Clamps is quickly and easily adjusted for different pipe wall thickness.
- Clamps 16” (406.4 mm) or larger are self-propelled with powerful air motors that drive the clamps forward through the pipe to the next joint .
|
Diameter of Pipe
» 6” – 18” (168.3 mm – 457.2 mm)
» 16” – 60” (406.4 mm – 1524 mm)
» External welding of all pipe sizes |
Recommended Clamp
» Pull-type Clamp
» Travel Clamp
» Copper Back-up Clamp |
|
 |

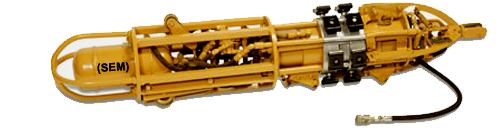

- Pull-type, non-powered Pneumatic Internal Line up Clamp
- For welding small diameter steel pipe from 6” – 18” (168.3” – 457.2 mm)
- Air reservoir tank
- Independent front and rear line up heads
- 40 feet of reach rod and control ends
|
|
| |
 |

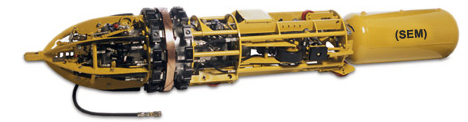

- Travel Pneumatic internal Line up Clamp
- For welding pipe diameters from 16" - 60" (406.4 mm – 1524 mm)
- Forward / reverse travel motor, Air reservoir tank
- Two large double acting air cylinders for accurate pipe alignment
- 40 feet of reach rod and control ends
|
Options :
SEM Conversion kit available to
quickly adjust clamp for different
size pipe.
|
| |
 |

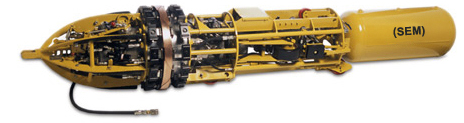

- Ensure a smooth circumferential weld internally in the pipe.
- Patented system operates independently between the front and rear clamping mechanisms of SEM Line-up Clamps.
- Supports the weld pool.
- Each copper shoe is designed to fully contact the internal surface of the pipe.
|
|
